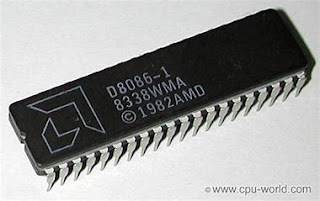

8086 MICROPROCESSOR

The 8086 microprocessor is a 16-bit microprocessor that was introduced by Intel in 1978. It is part of the x86 family of processors and is widely considered to be one of the most influential microprocessors in history.

Here are some key features and characteristics of the 8086 microprocessors:

1. Architecture: The 8086 microprocessor follows the complex instruction set computer (CISC) architecture. It has a 16-bit data bus, 20-bit address bus, and operates on 16-bit registers. The instruction set includes a wide range of instructions for performing arithmetic, logic, data movement, and control operations.

2. Segmented Memory Model: The 8086 uses a segmented memory model, where memory is divided into segments of up to 64 KB each. It supports both code and data segments, allowing for efficient memory management and larger addressable memory space.

3. Registers: The 8086 microprocessor has several important registers, including:

   - General-purpose registers: AX, BX, CX, DX, SI, DI, BP, and SP.

   - Segment registers: CS, DS, ES, and SS, used for addressing memory segments.

   - Instruction pointer (IP): Holds the offset of the next instruction to be executed.

4. Modes of Operation: The 8086 supports two modes of operation: real mode and protected mode.

   - Real mode: In real mode, the 8086 behaves like a simple 16-bit processor, with 1 MB of addressable memory. It provides compatibility with earlier 8080/8085 processors.

   - Protected mode: In protected mode, the 8086 offers advanced features such as memory protection, multitasking, and virtual memory. This mode is supported by the later x86 processors.

5. Interrupts and Interrupt Handling: The 8086 has a sophisticated interrupt system that allows it to respond to external events and perform interrupt-driven I/O. It supports a variety of interrupt types, including hardware and software interrupts, and provides interrupt vectors for different interrupt sources.

6. Instruction Set: The 8086 instruction set is rich and diverse, including a wide range of instructions for arithmetic and logical operations, data movement, string manipulation, control flow, and I/O operations. It also introduced new addressing modes and advanced instructions like string instructions and the "XLAT" instruction.

The 8086 microprocessor played a pivotal role in the development of personal computers and served as the foundation for the subsequent x86 processor family. Its architecture and instruction set influenced future generations of processors, and many software development practices and operating systems were designed to run on 8086-compatible platforms.
